Introduction
Drilling is a fundamental process in various industries, from mining and oil exploration to geothermal energy production and construction. Selecting the appropriate drill bit is crucial, as it can significantly impact the success and efficiency of a drilling operation. When it comes to drill bits, two primary options stand out: the PDC (Polycrystalline Diamond Compact) bit and the Tricone bit. This article will delve into the advantages, limitations, and suitability of each type in different geological conditions to help you make an informed decision when choosing the best option for your specific drilling requirements.
PDC Bit: Polycrystalline Diamond Compact

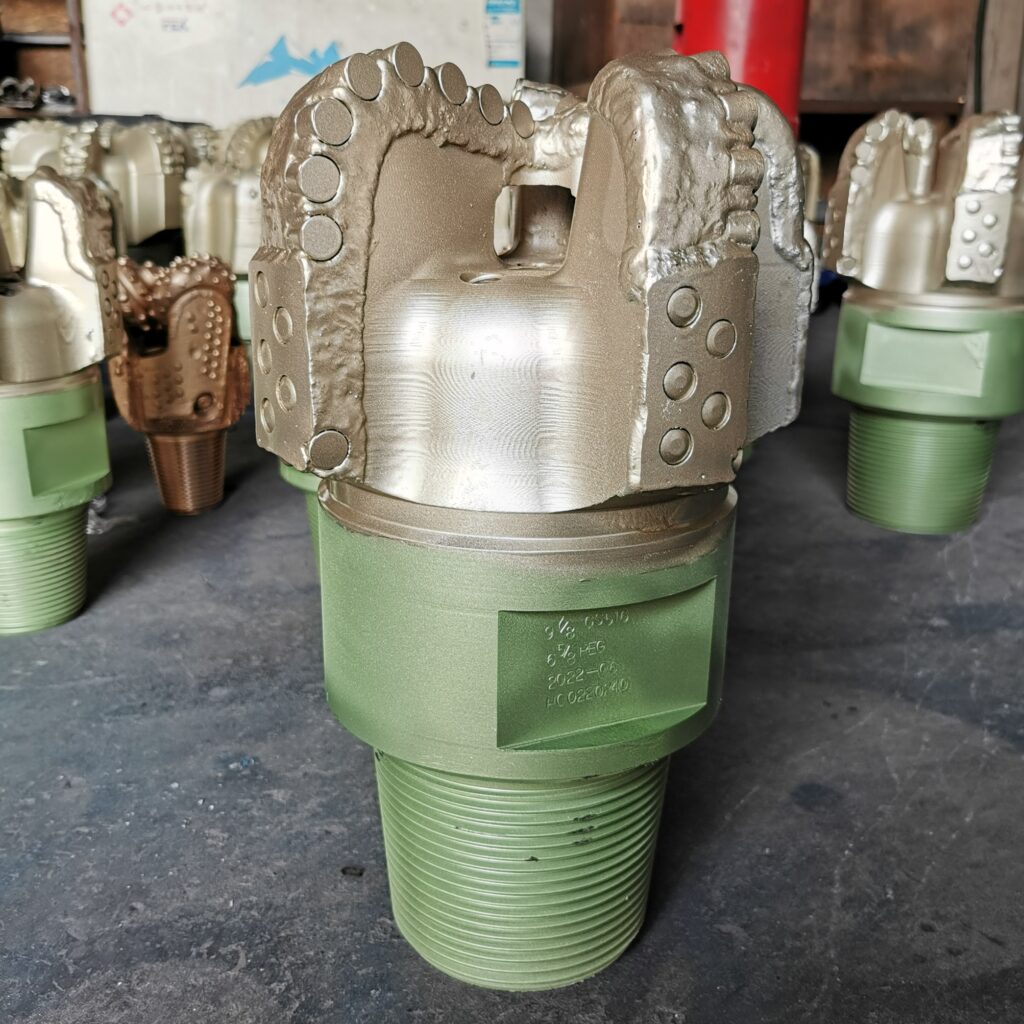

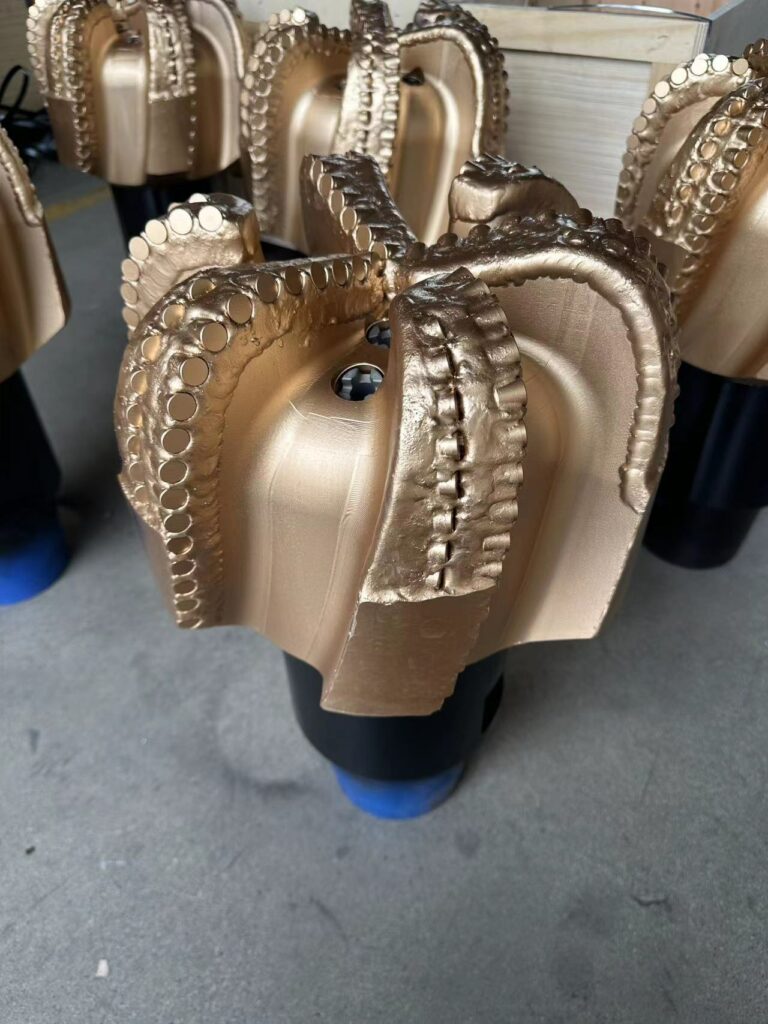

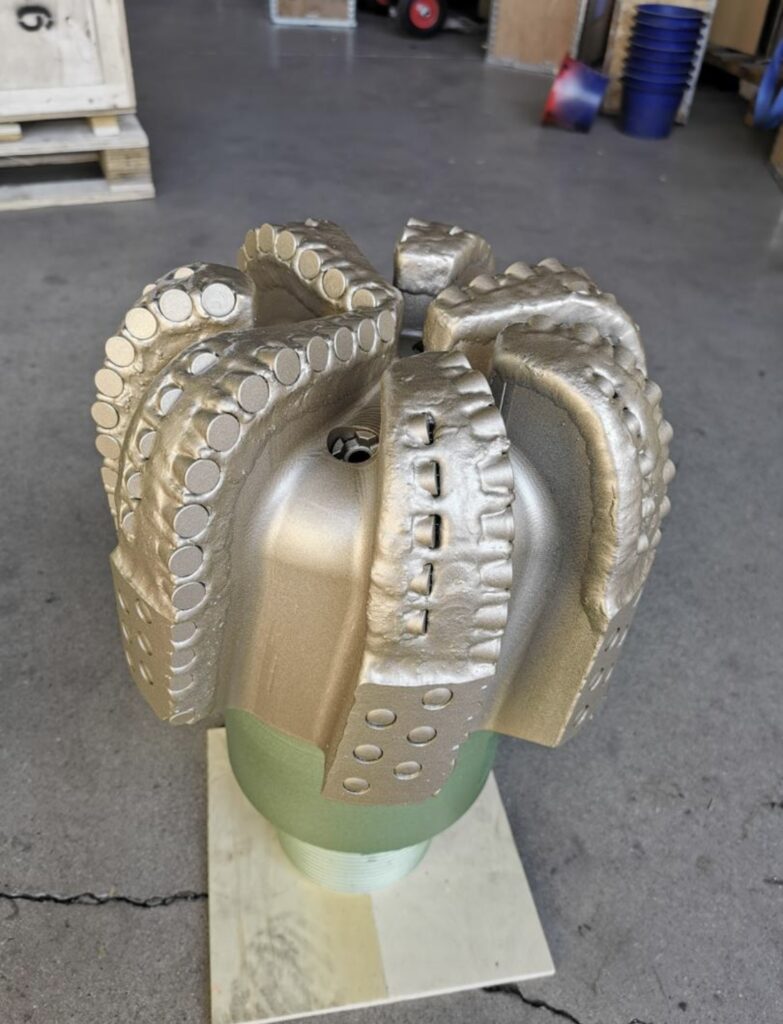

What is a PDC Bit? PDC stands for Polycrystalline Diamond Compact, and a PDC bit is a type of drill bit that utilizes synthetic diamond cutters (polycrystalline diamonds) as its primary cutting mechanism. These diamonds are bonded to a tungsten carbide substrate, forming a tough and wear-resistant cutting structure.
Advantages of PDC Bits
- Efficiency: PDC bits are known for their high drilling efficiency in relatively soft to medium-hard rock formations.
- Durability: They have a longer lifespan compared to Tricone bits in many applications due to their diamond cutters.
- Stability: PDC bits provide better stability while drilling, resulting in straighter boreholes.
- Cost-Effective: PDC bits are generally more cost-effective for drilling in relatively softer formations because of their longer lifespan.
Limitations of PDC Bits
- Not Suitable for Hard Formations: PDC bits may wear out quickly when drilling through extremely hard or abrasive rock formations.
- Less Versatility: They are best suited for specific applications and may not perform well in diverse geological conditions.
Suitable Geological Conditions for PDC Bits
- Soft to Medium-Hard Rock Formations
- Unconsolidated Sediments
- Shale and Clay

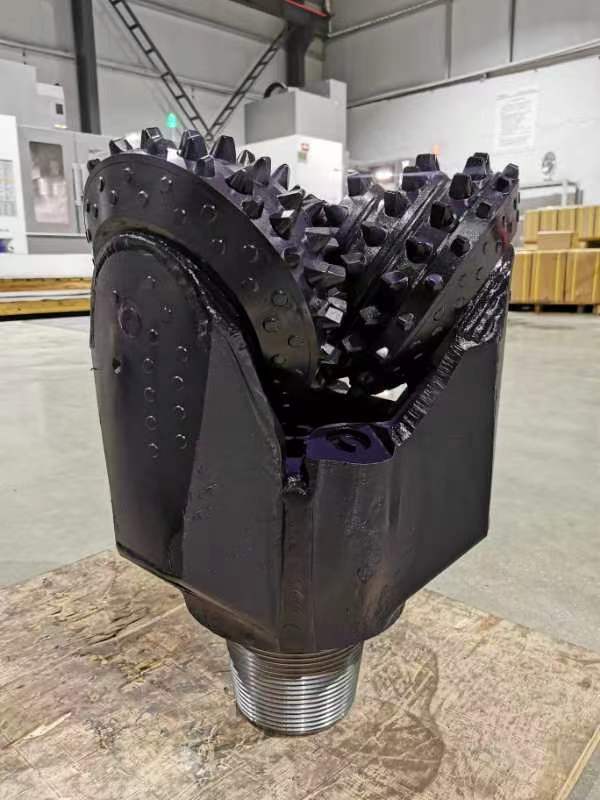

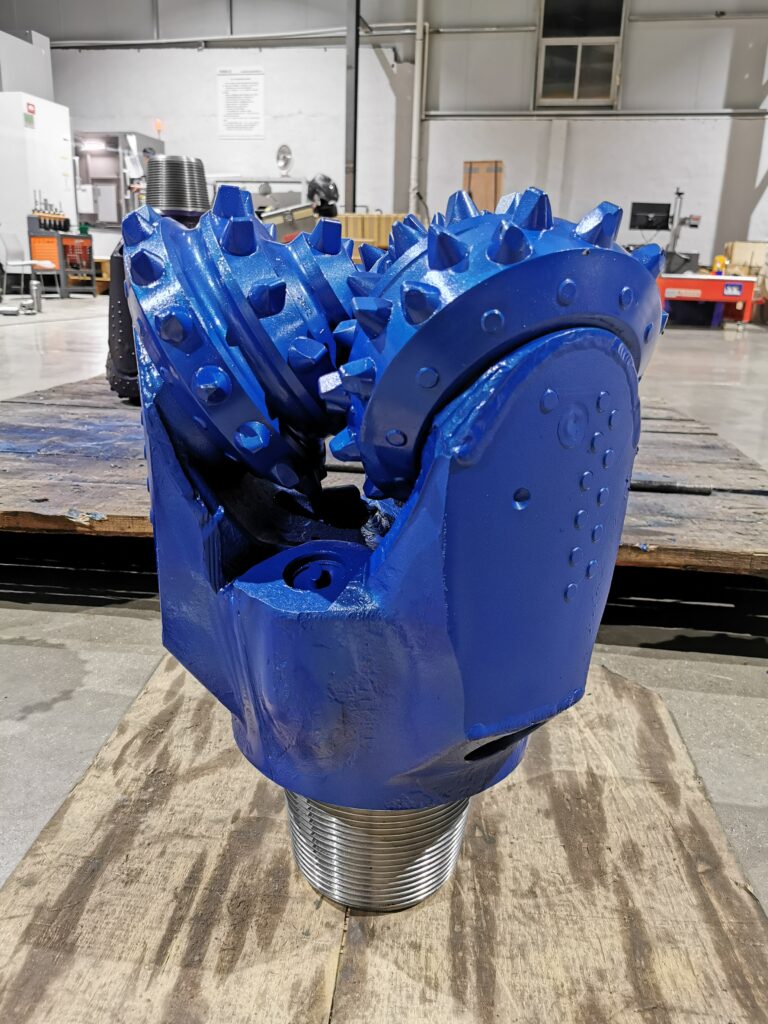

What is a Tricone Bit? A Tricone bit, short for “Tri-Cone Rotary Rock Bit,” is a mechanical drill bit with three rotating cones equipped with cutting teeth. These cones roll along the bottom of the borehole, crushing rock formations as they turn.
Advantages of Tricone Bits
- Versatility: Tricone bits are versatile and can be used in a wide range of rock formations, from soft to extremely hard.
- Effective in Challenging Conditions: They perform well in abrasive and uneven formations.
- Temperature Resistance: Tricone bits can handle higher temperatures compared to PDC bits.
Limitations of Tricone Bits
- Lower Drilling Efficiency: Tricone bits may have a slower rate of penetration (ROP) in certain formations, leading to longer drilling times and higher costs.
- Shorter Lifespan: They typically have a shorter lifespan compared to PDC bits, especially in soft formations.
- Less Stability: Tricone bits may not provide the same level of borehole stability as PDC bits, leading to potential borehole deviation.
Suitable Geological Conditions for Tricone Bits
- Hard and Abrasive Rock Formations
- Complex and Variable Formations
- High-Temperature Environments
Choosing the Best Bit for Your Project
When selecting the best drill bit for your project, consider the following factors:
Geological Considerations: Evaluate the hardness, abrasiveness, and variability of the rock formations you will encounter during drilling. PDC bits are better suited for softer formations, while Tricone bits excel in harder and more abrasive conditions.
Project Objectives: Consider your drilling goals, such as drilling speed, borehole stability, and cost efficiency. PDC bits are faster and more cost-effective in appropriate formations, while Tricone bits offer versatility.
Budget Constraints: Assess your budget and cost constraints. While PDC bits may have a higher upfront cost, they can be more cost-effective in the long run due to their durability.
Environmental Impact: Consider the environmental impact of your drilling operation. PDC bits may produce less waste compared to Tricone bits.
Expert Consultation: If you’re unsure which bit to choose, consult with drilling experts or manufacturers who can provide guidance based on your specific project requirements.
Comparative Analysis
To make an informed choice, let’s conduct a comparative analysis of PDC bits and Tricone bits across various factors:
Drilling Efficiency: In soft to medium-hard formations, PDC bits are generally more efficient due to their faster rate of penetration (ROP). However, in extremely hard formations, Tricone bits may perform better than PDC bits.
Durability and Lifespan: PDC bits have a longer lifespan in suitable formations, reducing the need for frequent bit changes. Tricone bits may require more frequent replacements.
Borehole Stability: PDC bits offer better borehole stability, resulting in straighter and more predictable boreholes. Tricone bits may struggle with stability in certain formations.
Versatility: Tricone bits are highly versatile and can handle a wide range of formations, making them a go-to choice for uncertain geological conditions. PDC bits are more specialized.
Temperature Resistance: Tricone bits can withstand higher temperatures, making them suitable for drilling in elevated-temperature environments.
Cost-Effectiveness: The cost-effectiveness of a PDC bit or a Tricone bit depends on the project’s specific geology and drilling objectives. In the long run, PDC drill bits may be more cost-effective due to their longer life.
Let’s explore the practical applications of PDC drills and Tricone drills:
Offshore Oil Exploration: In offshore drilling, PDC bits are often preferred for their efficiency and cost-effectiveness. However, Tricone bits may be necessary when encountering hard subsurface formations.
Geothermal Energy Production: Tricone bits are commonly used in geothermal drilling due to the often challenging and variable geological conditions. Their versatility proves invaluable in such projects.
Mining Operations: Depending on the specific mineral deposit and geological conditions, both PDC and Tricone bits find applications in mining operations.
Civil Engineering and Construction: In construction projects involving rock drilling, PDC bits are preferred when dealing with softer rocks, while Tricone bits are used in harder rock formations.
Water Well Drilling: The choice between PDC and Tricone bits in water well drilling depends on the geological characteristics of the region, with PDC bits being suitable for softer formations.
Future Trends and Innovations
The drilling industry continues to evolve. Here are some future trends and innovations:
Advances in PDC Bit Technology: Ongoing research and development are leading to improved PDC bit designs, optimizing their performance across a broader range of geological conditions.
Innovations in Tricone Bit Design: Innovative materials and designs are enhancing the efficiency and durability of Tricone bits.
Hybrid Drill Bits: Hybrid drill bits that combine elements of both PDC and Tricone bits are emerging, offering the versatility of Tricone bits with the speed of PDC bits.
Sustainable Drilling Solutions: Environmental concerns are driving the development of sustainable drilling solutions that minimize waste and environmental impact.
Conclusion
In conclusion, the choice between a PDC bit and a Tricone bit is not a one-size-fits-all decision. It depends on the specific geological conditions, project objectives, budget constraints, and environmental considerations. Both types of bits have their advantages and limitations, and the optimal choice should be based on a careful analysis of these factors .
By evaluating the geological conditions you will encounter, considering your drilling goals, budget, and seeking expert advice when needed, you can make an informed decision to select the best drill bit for your project. Whether it’s the efficiency of a PDC bit or the versatility of a Tricone bit, each has its place in the world of drilling, contributing to the success of various industries and the advancement of drilling technology.
