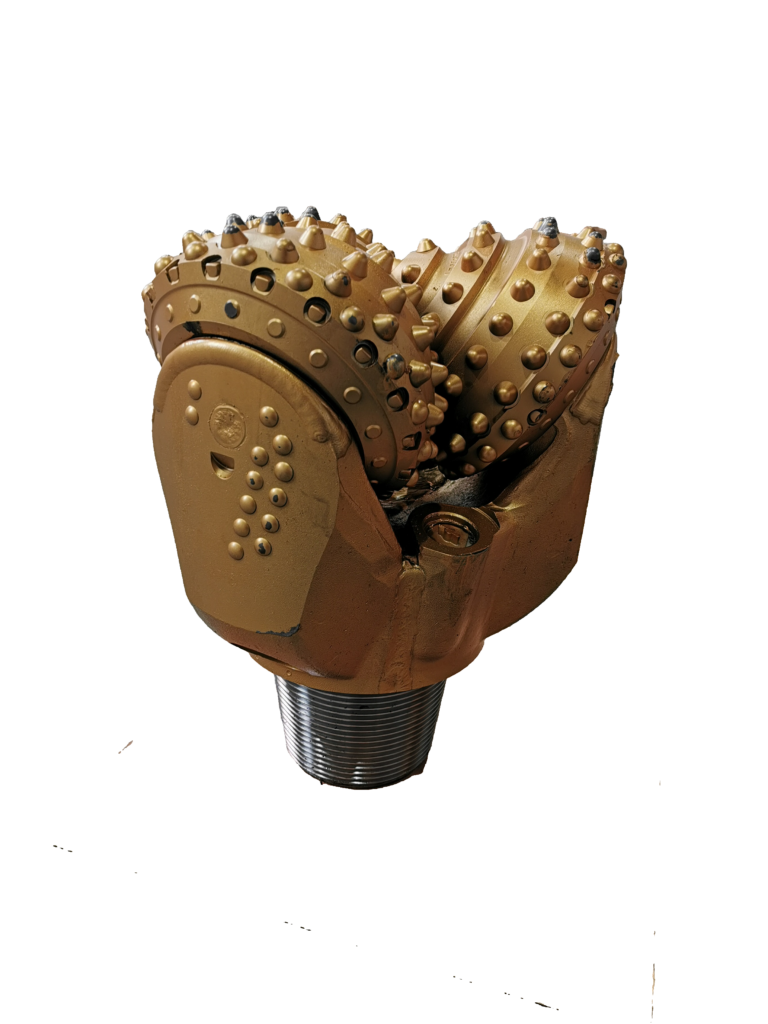

Shareate water well bit is designed and manufactured in accordance with the standards of the oil industry rotary bit. Combined with the leading mining rotary bit design and manufacturing technology, Shareate water well bit continues to deliver long life, high drilling efficiency and low drilling cost.
Shareate offers more than 30 kinds of water well bits with TCI (carbide buttons) and mill tooth configurations range from sizes 4 1/2 to 17 1/2 inches. Applications include rock formations from soft such as soft shale, clay and salt rock to medium-hard such as limestone, dolomite, sandstone and chert. We developed several series of bearings such as O-shaped rubber seals, flat rubber seals, and metal seals, which are suitable for different drilling processes such as conventional drilling, directional drilling, high temperature geothermal well drilling and high-speed rotary drilling.
Customization on Shareate water well bit is available for specific geology. Backed up by the global network and expert support, Shareate is continuously improving our services and solutions.

Bit Type

IADC

Recommend

parameter

 Apply formation
Pull down（KN/mm） Rotation speed（r/min）
Rubber seal 117 0.35~0.90 150~80 Extremely soft formations with low compressive strength and high drill ability, such as soft shale, clay, salt rock, etc.
127 0.35~1.00 150~70 Low compressive strength, high drill ability soft formation, such as shale, clay, salt rock, soft limestone, etc.
417 0.35~0.90 140~70 Extremely soft formations with low compressive strength and high drill ability, such as shale, clay, sandstone, conglomerate, etc.
437 0.35~0.95 140~60 Extremely soft formations with low compressive strength and high drill ability, such as shale, clay, sandstone, conglomerate, etc.
447 0.35~1.00 140~60 Soft formations with low compressive strength and high drill ability, such as shale, clay, salt rock, sandstone, soft limestone, gypsum, etc.
517 0.35~1.05 120~50 Soft formations with low compressive strength and high drill ability, such as shale, clay, sandstone, soft limestone, etc.
527 0.35~1.05 120~50 Soft formations of compressive strength, such as shale, clay, sandstone, soft limestone, salt rock, anhydrite, etc.
537 0.35~1.05 110~40 Compressive strength, medium soft, with hard abrasive inter layer, such as hard shale, anhydrite, soft limestone, sandstone, etc
547
617 0.35~1.05 80~40 High compressive strength, medium to hard, with thick hard inter calations, such as hard shale, limestone, dolomite, sandstone, etc.
627
637 0.70~1.20 70~40 High compressive strength, high abrasive and medium hard formations such as limestone, dolomite, sandstone, flint, etc.
647
Bit SizeAPI ThreadBit model
inmmin
4 1/2114.32 3/8DHA117、DHA217、DHA517
5 1/4133.43 1/2DHA517、DHA537
5 1/2139.73 1/2DHA517、DHA537
6152.43 1/2DHA517、DHA537、DHA617、DHA637、DHV517、DHV537、DHV617、DHV637
6 1/8155.63 1/2DHA517、DHA537、DHV517、DHV537
6 1/4158.83 1/2DHA517、DHA537、DHV517、DHV537
6 1/2165.13 1/2DHA437、DHA517、DHA537、DHA617、DHA637、DHV517、DHV537、 DHV617、DHV637
6 3/4171.53 1/2DHA517、DHA537、DHA617、DHA637、DHV517、DHV537 DHV617、DHV637
7 1/2190.54 1/2DHV517、DHV537、DHV617
7 5/8193.74 1/2DHV537、DHV617
7 7/82004 1/2DHV417、DHV517、DHV527、DHV537、DHV617
8 1/2215.94 1/2DHA137、DHA437、DHA517、DHA537、DHV137、DHV517、DHV537、DHV617、DHV637
8 3/4222.34 1/2DHA447、DHV517、DHV537、DHV617
9 1/2241.36 5/8DHA127、DHV127、DHV437、DHV517、DHV617、DHV637
9 5/8244.56 5/8DHV547、DHV637
9 7/8250.86 5/8DHV117、DHV437、DHV517、DHV537、DHV617、DHV637、SHJ617、SHJ637
10 5/8269.96 5/8DHV117、DHV217、DHV517、DHV537、DHV617
11 5/8295.36 5/8DHA117、DHA127、DHA517、DHA537、DHA617
12 1/4311.26 5/8DHA117、DHA127、DHA437、DHA517、DHA537、DHA547、DHA617、DHA637
13 3/8346.16 5/8SGA535、SGA545
14 3/4374.77 5/8SGA615
17 1/2444.57 5/8SGA535
